Connect the device

Connect the device

(1) seal packing

Type:

ZKG700 / (DNxx + PNxx + + flange face type standard) (low temperature normal flange)

ZKG721 / (DNxx + PNxx + + flange face type standard) (high temperature flange card sets)

Please refer to article 1.6

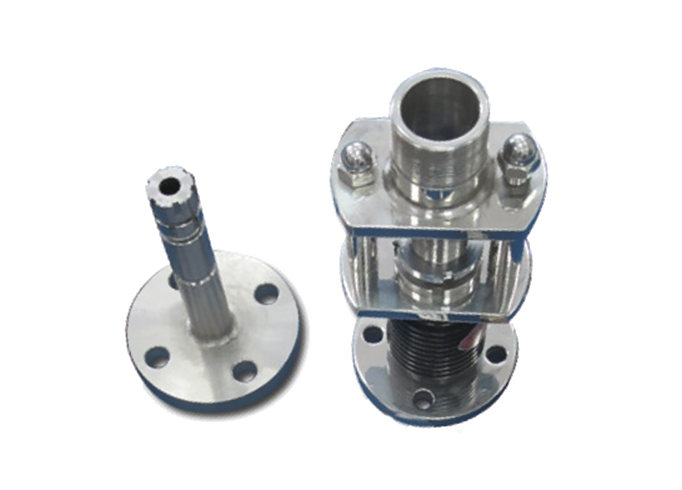

(2) bearing

Type:

ZKG740 / (DNxx + PNxx + + flange face type standard) (flange plug type bearing)

ZKG741 (cold welding spiral type bearing)

Technical parameters:

Installation method: welded or flanged connection

Standard sealing material: rubber/fluoride, fluoride lung (operating temperature range: - 26-204 ℃

(3) the cock

Carrying the cock is all sorts of equipment (bolt, probes, drug injection nut, etc.) of the "carrier", is in the bearing device can be recycled.

There are two types of cock: ZK750 (cock) hollow, ZK751 (solid plug)

Solid cock - this core has a blind holes on the body. Used to install do not need to connect to external devices, such as hanging piece. Usually keep it with a bypass carrying on joint of instruments, such as injector or sampler system, or sand probe.

Hollow cock - the core body has a hole, used to install the need to connect to external devices, such as corrosion monitoring probe and hydrogen monitoring probe.
