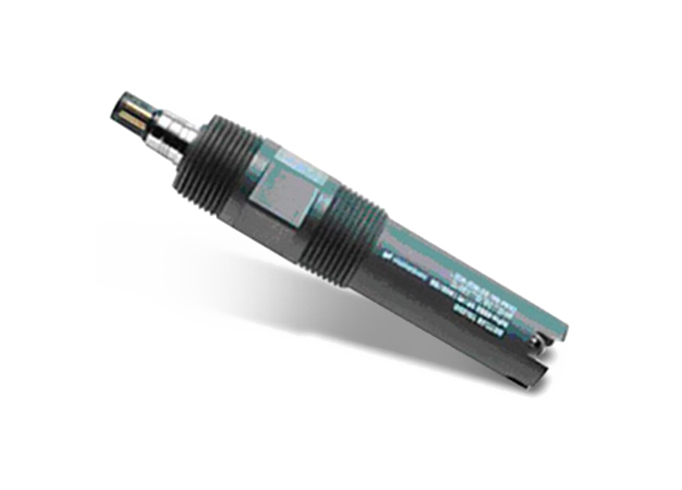

PH electrode

       PH corrosion online monitoring system, the pH electrode is an important sensor unit, for different process medium environment, should choose the appropriate pH electrode are monitored.

(1) type ZK6200 pH electrode

Technical parameters:

1 ~ 14 pH measurement range

Temperature: 0 ~ 70 ℃;

When temperature is 65 ℃ or less pressure 0.7 MPa, 0.35 MPa when temperature is 100 ℃ or less pressure;

The maximum velocity: 3 m/s

Acuity: < pH 0.005

The packing gross weight: 1.5 kg

Packing size: 700 * 200 * 100 mm

(2) type ZK6201 pH electrode

Technical parameters:

1 ~ 14 pH measurement range

Temperature: 0 ~ 70 ℃;

When temperature is 65 ℃ or less pressure 0.7 MPa, 0.35 MPa when temperature is 100 ℃ or less pressure;

The maximum velocity: 3 m/s

Acuity: < pH 0.005

The packing gross weight: 1.5 kg

Packing size: 700 * 200 * 100 mm

(3) type ZK6205 pH electrode

Technical parameters:

1 ~ 14 pH measurement range

Temperature: 0 ~ 130 ℃;

Pressure of 0.8 MPa or less;

The maximum velocity: 3 m/s

Acuity: < pH 0.005

The packing gross weight: 1.5 kg

Packing size: 700 * 200 * 100 mm

(4) type ZK6215 pH electrode

Technical parameters:

1 ~ 14 pH measurement range

Temperature: 0 ~ 120 ℃;

When the temperature at 120 ℃ pressure 2.0 MPa

The maximum velocity: 3 m/s

Acuity: < pH 0.005

The packing gross weight: 1.5 kg

Packing size: 700 * 200 * 100 mm

(5) type ZK6220 pH electrode

Technical parameters:

Cheng: 0 ~ 14 ph

Operating temperature: 5 ~ 105 ℃

Storage temperature: 4 ~ 70 ℃

Maximum pressure: < 0.7 Mpa

The maximum velocity: 3 m/s

Acuity: < pH 0.005

The packing gross weight: 2.0 kg

Packing size: 400 * 200 * 100 mm
