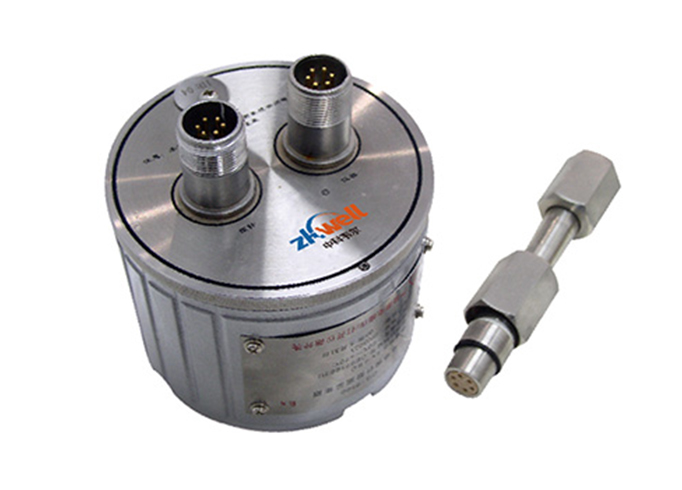

Double probe for precise inductance probe data collector
| Scope of probe impedance: | 1~20milliohm |
| The power supply voltage： | 12~36VDC |
| current ： | 20mA@24VDC |
| Functional description ： | Data collection, data transmitting, collector with 7 days off the network storage function; With functions of measuring temperature medium; With RS485 and 4 ~ 20 ma two data transmitting way; To measure a two-headed inductance probe; Upward compatible ZK9810 and ZK9800. |
| Data transfer mode: | RS485/4~20mA |
| The RS 485 address: | 0~63 |
| The environment temperature ： | -25℃ ~ +70℃ |
| Enclosure protection grade: | IP65 |
| Explosion-proof type: | The Ann, flame-proof |
| Installation dimensions: | 115mm x 115mm x 120mm |
| Net weight: | 1.8 Kg |
