Electrochemical probe is a sensor unit of electrochemical corrosion monitoring system, according to the different industrial field environment, to provide you with suitable for different temperature, pressure, disassembling of the probe. Electrochemical probe according to tear open outfit form points, divided into scalable and scalable types; Points in accordance with the applicable temperature and pressure conditions, can be divided into high temperature (high pressure) and low temperature electrochemical probe electrochemical probe (low pressure).
About probe material description: probe materials can be produced according to customer requirements, such as select material is special, needs certain time procurement production, to shorten the production cycle to delivery as soon as possible, advising clients to provide required materials. Provide material specifications to meet the following requirements: plank: thickness greater than 6 mm; Rod: more than 6 mm diameter.

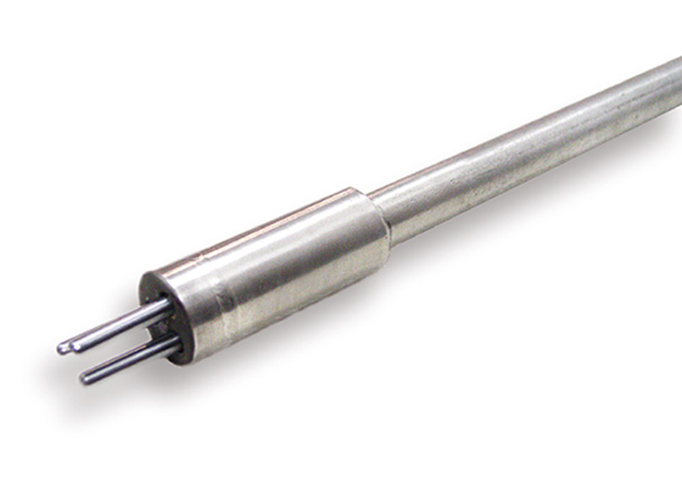

（1）Scalable cylindrical electrochemical probe
size：ZK8200-Material - electrode area can be omitted (S4) - order at length
【Technical parameters：】
| Commonly used material | 10#steel 、20#steel 、brass、copper 、N80、316、304、321 |
| Suitable temperature | ≤100℃ |
| Apply pressure | Apply pressure 2.0 MPa or less (specimens confined to meet requirements, flange seal structure to withstand pressure shall prevail) |
| The corrosion speed measurement range | 1×10-4～2.5mm/a |
| The thickness of the specimen | 4 cm2 |
| Probe safety life | ≤4years |
| Probe useful life | When the corrosion rate of the medium is 0.1 mm/n (years), 2 years or less |
| The length of the probe | optional |
| installation | It can be installed under pressure |
【Packing parameters：】
| Weight（kg） | Size （mm） | ||
| Probe the net weight | 1.17 | Probe size | φ22×900 |
| Packing weight | 1.56 | Packing size | 1050×200×200 |
| Remark： | 1、Packaging for carton packaging, each box up to six probe 2、Probe length according to site condition and decide, general probe is 900 mm |
（2）Scalable cylindrical electrochemical probe (with temperature display)
size：ZK8200T-Material - electrode area can be omitted (S4) - order at length
【Technical parameters：】
| Commonly used material | 10#steel 、20#steel 、brass 、copper 、N80、316、304、321 |
| Suitable temperature | ≤100℃ |
| Apply pressure | Apply pressure 2.0 MPa or less (specimens confined to meet requirements, flange seal structure to withstand pressure shall prevail) |
| The corrosion speed measurement range | 1×10-4～2.5mm/a |
| Temperature measurement range | 0～100 ℃ |
| Temperature measurement error | ±0.5℃ |
| The thickness of the specimen | 4 cm2 |
| Probe safety life | ≤4years |
| Probe useful life | When the corrosion rate of the medium is 0.1 mm/n (years), 2 years or less |
| The length of the probe | optional |
| installation | It can be installed under pressure |
【Packing parameters ：】
| Weight（kg） | Size （mm） | ||
| Probe the net weight | 1.17 | Probe size | φ22×900 |
| Packing weight | 1.56 | Packing size | 1050×200×200 |
| Remark： | 1、Packaging for carton packaging, each box up to six probe 2、Probe length according to site condition and decide, general probe length is 900 mm |
（3）Not scale cylindrical electrochemical probe
size：ZK8201-Material - electrode area can be omitted (S4) - order at length/DNxx + PNxx + face type + standard flange
【Technical parameters：】
| Commonly used material | 10#steel 、20#steel 、brass 、copper、N80、316、304、321 |
| Suitable temperature | ≤100℃ |
| Apply pressure | Apply pressure or less 20 mpa (the flange seal structure to withstand pressure shall prevail) |
| The corrosion speed measurement range | 1×10-4～2.5mm/a |
| Temperature measurement range | 0～100 ℃ |
| Temperature measurement error | ±0.5℃ |
| The thickness of the specimen | 4 cm2 |
| Probe safety life | ≤4years |
| Probe useful life | When the corrosion rate of the medium is 0.1 mm/n (years), 2 years or less |
| The length of the probe | optional |
| installation | Flange installation |
【Packing parameters：】
| wieght（kg） | size （mm） | ||
| Probe the net weight | About 3.5 (on the basis of the flange size and decide) | Probe size | According to working condition |
| The wooden case net weight | 7.55 | Packing size | 800×180×180 |
（4）Not scale cylindrical electrochemical probe
Models: ZK8202 - material - electrode area can be omitted (S4) - order at length/screw parameters
【 technical parameters:】
| Commonly used material | 10#steel 20#steel 、brass 、copper 、N80、316、304、321 |
| The corrosion speed measurement range | 1×10-4～2.5mm/a |
| The thickness of the specimen | 4 cm2 |
| Probe safety life | ≤4years |
| Probe useful life | When the corrosion rate of the medium is 0.1 mm/n (years), 2 years or less |
| The length of the probe | optional |
| installation | Low temperature screw to install and can be used for the reaction kettle, etc |
【Packing parameters ：】
| Weight（kg） | Size （mm） | ||
| Probe the net weight | 1.17 | Probe size | φ22×900 |
| Packing weight | 1.56 | Packing size | 1050×200×200 |
（5）Probe accessories - electrochemical electrodes
| Num | Name | Size | Electrode area | Material | Connection thread |
| 1 | Online electrochemical electrodes | ZK8290 - material - S4 | 4cm2 | The same as the wall material | M3 |
| 2 | Online electrochemical electrodes | ZK8290 - material - S4 / M2 | 4cm2 | The same as the wall material | M2 |
